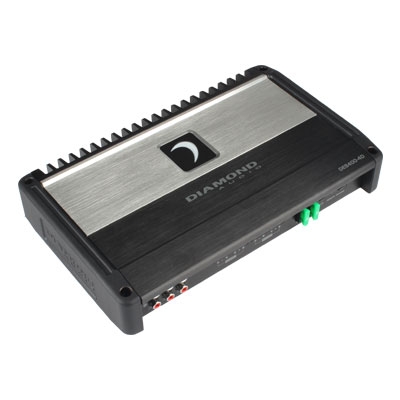

Diamond Audio 4 Channel Amp (DES400.4)

Description

RMS Power Rating

• RMS Power (4Ω): 100 W x 4 / 300 W x 2
• RMS Power (2Ω): 100 W x 4 / 300 W x 2
• RMS Power (1Ω): 100 W x 4

Type

• Topology: Full Range Class D

Distortion

• THD 4(1KHz@4Ω) : 0.06%
• S/N Ratio: ≤ 100 dBA

Input Sensitivity

• Low Input Level: 150mV - 5.0V
• High Input Level: N/A

Crossover(-24dB/Oct)

• Variable High-Pass: 35-350Hz @ 12dB / Oc
• Variable Low-Pass: 50-250Hz @ 12dB/Oc
• Variable Sub-Sonic: N/A

Bass Remote

• N/A

Dimensions

• Length x Width x Height(Inches): 11.81 x 2 x 7.67 inches
• Length x Width x Height(mm): 300 x 50.8 x 195 mm
