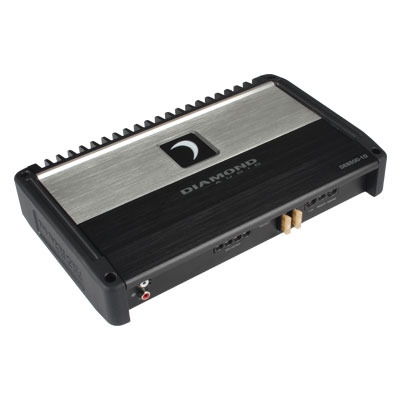

Diamond Audio Mono Block Amp (DES500.1D)

RMS Power Rating

• RMS Power (4Ω): 500 W x 1
• RMS Power (2Ω): 500 W x 1

Type

• Topology: Class D

Distortion

• THD 4(1KHz@4Ω) : 0.3%
• S/N Ratio: ≤ 90 dBA

Input Sensitivity

• Low Input Level: 150mV - 5.0V
• High Input Level: N/A

Crossover(-24dB/Oct)

• Variable High-Pass: N/A
• Variable Low-Pass: 35-350Hz @ 12dB / Oct
• Variable Sub-Sonic: 15-75Hz @18dB/Oct

Bass Remote

• Included 12dB @ 45Hz

Dimensions

• Length x Width x Height(Inches): 11.81 x 2 x 7.67 inches
• Length x Width x Height(mm): 300 x 50.8 x 195 mm
